2026 GMC Sierra 1500 near Morganton, NC
The 2026 GMC Sierra 1500 is engineered as a light-duty truck designed to combine capability with precision. For the 2026 GMC Sierra 1500, it introduces updated exterior colors, including Glacier White Tricoat and Coastal Dune, while retiring White Frost Tricoat and Thunderstorm Gray. It also integrates compatibility with Amazon Alexa, enhancing connectivity options. Built with a range of powertrains, advanced suspension systems, and a variety of configurations, the 2026 GMC Sierra 1500 remains a versatile option for towing, hauling, and daily driving. Its specifications reflect careful attention to detail across powertrain engineering, chassis design, exterior proportions, interior space, and safety systems.

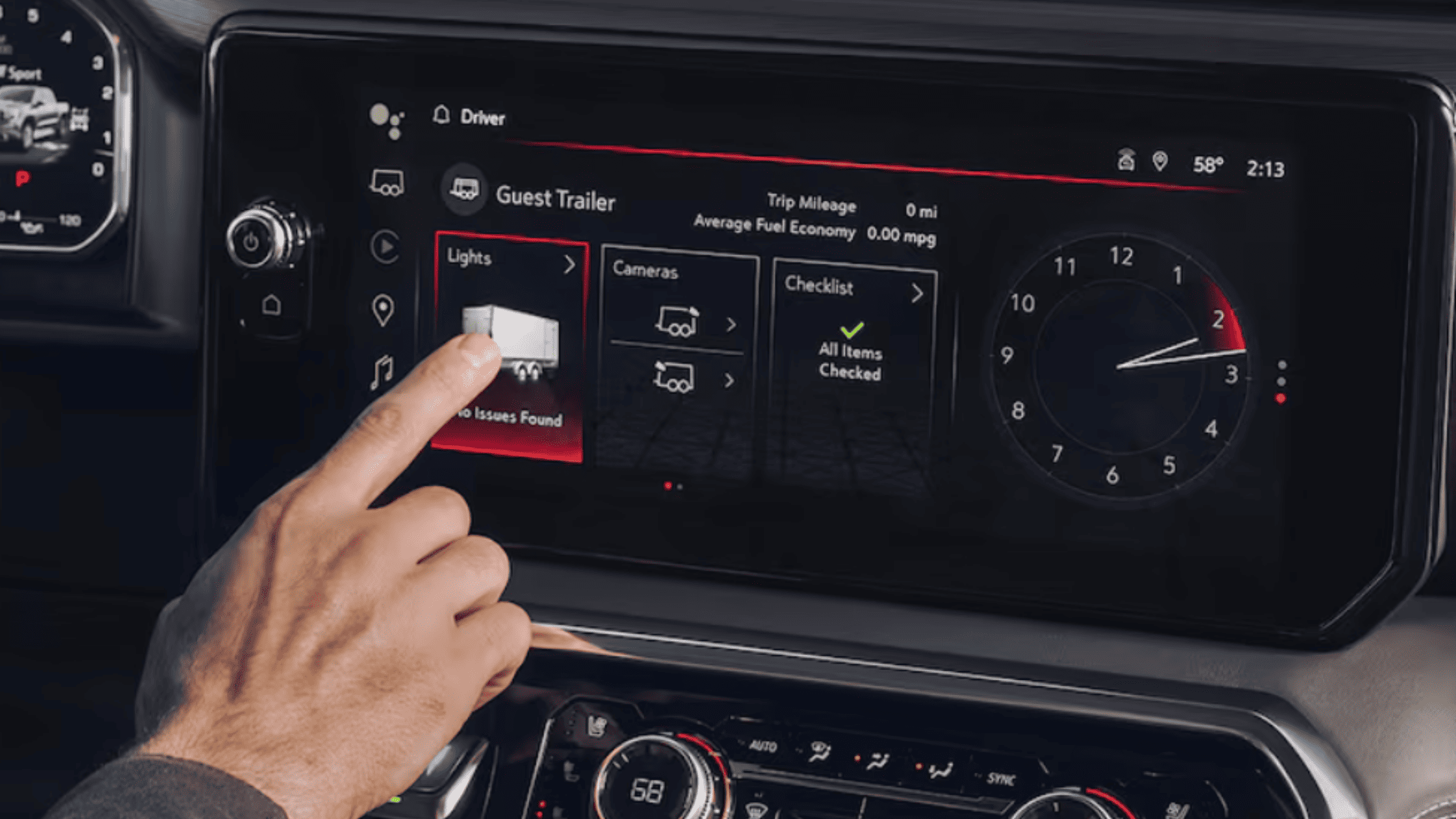

Technology and Connectivity
The 2026 GMC Sierra 1500 integrates modern technology through its compatibility with Amazon Alexa. Drivers gain access to voice-command functions, including navigation, media, and vehicle controls. Remote lock, unlock, and start functions are available when paired with the GM-installed remote start system and appropriate services.
These technologies are supported by the infotainment platform of GMC and designed to keep drivers connected without distraction. The inclusion of account linking for Alexa ensures integration across devices and platforms.
Interior Dimensions and Space
Interior measurements emphasize comfort and practicality. Regular Cab models provide 43.1 inches of headroom and 44.5 inches of legroom in the front. Double Cab models provide 43 inches of headroom, 44.5 inches of front legroom, and 35.2 inches of rear legroom. Crew Cab models expand rear seat legroom to 43.4 inches, offering additional passenger comfort.
Shoulder room measures up to 66 inches in the front and 65.1 inches in the rear of Crew Cab models. Hip room extends up to 61.2 inches in the front and 60.2 inches in the rear, accommodating passengers comfortably.
Powertrain Engineering
The 2026 GMC Sierra 1500 is available with four distinct engine options, each built from cast aluminum for strength and weight efficiency.
The 2.7L Turbo DOHC engine delivers 310 horsepower at 5,600 rpm and 430 lb.-ft. of torque between 1,500 and 4,000 rpm. It employs dual-overhead camshafts, a tripower valvetrain with variable valve timing and valve lift, as well as direct high-pressure fuel injection with Active Fuel Management.
The 3.0L I-6 Turbo Diesel provides 305 horsepower at 3,750 rpm and 495 lb.-ft. of torque at 1,500 rpm. Its dual overhead camshafts, common-rail direct injection, and electronic throttle valve maximize responsiveness and torque delivery.
The 5.3L V-8 generates 355 horsepower at 5,600 rpm and 383 lb.-ft. of torque at 4,100 rpm. This engine utilizes Dynamic Fuel Management and direct injection for optimized performance under varying loads.
The 6.2L V-8 offers 420 horsepower at 5,600 rpm and 460 lb.-ft. of torque at 4,100 rpm. Also paired with Dynamic Fuel Management and direct injection, it provides the highest output in the lineup, suited for drivers requiring maximum power.
Transmission pairings include an 8-speed automatic for the 2.7L Turbo and a 10-speed automatic for the 3.0L Diesel, 5.3L V-8, and 6.2L V-8. Gear ratios are configured to optimize acceleration, fuel economy, and towing stability.
Drivetrain and Axle Ratios
The 2026 GMC Sierra 1500 offers tailored axle ratios to align with specific engines and applications. The 2.7L Turbo uses a 3.42 axle, while the 3.0L Diesel is available with either 3.23 or 3.73 ratios when equipped with the Max Trailering Package. The 5.3L V-8 can be paired with either 3.23 or 3.42 depending on configuration, and the 6.2L V-8 employs a 3.42 axle. These ratios support balanced towing capacity, load handling, and highway efficiency.
Four-wheel drive models incorporate either a two-speed transfer case or an Autotrac automatic transfer case. AT4X models benefit from Multimatic® DSSV dampers, while Denali trims feature Adaptive Ride Control for smoother transitions across varying road surfaces.
Suspension and Braking Systems
The 2026 GMC Sierra 1500 uses independent coil-over-shock suspension in the front with twin-tube shock absorbers. AT4 trims use Rancho® shocks, and AT4X configurations employ Multimatic® DSSV dampers. The rear suspension features a solid axle with semi-elliptic, variable-rate, two-stage multileaf springs. Shock absorbers are twin-tube, with Rancho® variants included for AT4.
Braking capability comes from four-wheel disc brakes with electro-hydraulic power assist and ABS. The vented front Duralife rotors measure 13 inches in diameter, while the rear rotors measure 13.6 inches. This system ensures consistent stopping power under heavy load conditions.
Exterior Dimensions and Configurations
The 2026 GMC Sierra 1500 offers Regular Cab, Double Cab, and Crew Cab configurations with multiple box lengths. Regular Cab wheelbases range from 126.5 inches with a 6-foot 6-inch box to 139.5 inches with an 8-foot box. Double Cab models feature a 147.4-inch wheelbase. Crew Cab models extend from 147.4 inches with a 5-foot 8-inch box to 157.1 inches with a 6-foot 6-inch box.
Overall length ranges from 210.9 inches for a Regular Cab short box to 242.4 inches for a Crew Cab long box. Width is consistent across all models at 81.1 to 81.2 inches. Heights vary between 75.4 and 78.3 inches depending on drivetrain and trim, with lifted models providing additional ground clearance.
Ground clearance begins at 7.7 inches and reaches up to 11.2 inches on AT4 models. These dimensions allow the 2026 GMC Sierra 1500 to adapt to both urban environments and rugged terrain.
Weight, Payload, and GVWR
Base curb weights vary according to engine and configuration. A Regular Cab 2.7L 2WD with a short box weighs approximately 4,410 pounds, while a Crew Cab 6.2L 4WD with a long box weighs over 5,300 pounds.
Gross Vehicle Weight Ratings (GVWR) range from 6,700 pounds in a Regular Cab short box to 7,300 pounds in Crew Cab four-wheel-drive models with the Max Trailering Package.
Payload capacity ranges from 1,520 pounds in a 6.2L V-8 Crew Cab AT4X to 2,260 pounds in a 2.7L Turbo Regular Cab. This variation ensures configurations for both high-capacity work use and balanced daily driving.
Trailering and Towing Performance
The 2026 GMC Sierra 1500 is engineered to support significant towing needs. Trailering capacity varies from 8,800 pounds in certain AT4X trims to 13,300 pounds in properly equipped 6.2L V-8 and 3.0L Diesel models with the Max Trailering Package.
Regular Cab 2.7L Turbo models achieve up to 9,500 pounds of towing capacity, while Crew Cab 5.3L V-8 models with the NHT package reach up to 11,300 pounds. Diesel-powered configurations achieve 13,300 pounds with appropriate equipment, confirming their suitability for heavy-duty tasks.
Fuel tank capacity is designed to support long-distance travel under load. Regular and Double Cab models carry 24 gallons, Crew Cab models also carry 24 gallons, and Regular Cab 2WD Diesel models carry 22 gallons. A larger 28.3-gallon option is available on Regular Cab gas-powered configurations.
Wheel and Tire Availability
The 2026 GMC Sierra 1500 provides a range of wheels and tires suited to specific tasks. Standard 17-inch steel wheels are offered alongside available aluminum wheels in 17-, 18-, 20-, and 22-inch sizes. Tire options include all-season and all-terrain designs, with Goodyear® Wrangler Territory available for enhanced off-road traction. Sizes extend from P255/70R17 up to P275/50R22, offering adaptability for different driving conditions.
Safety Systems
The 2026 GMC Sierra 1500 prioritizes safety through structural engineering and driver-assist technologies. Its four-wheel ABS system works in tandem with electro-hydraulic power-assist braking for reliable stopping. Ventilated Duralife rotors provide durability under repeated use.
Optional driver assistance packages expand safety capabilities with advanced monitoring and response systems. The integration of stability and handling technologies ensures drivers maintain confidence under varying load and terrain conditions.
