2026 Chevrolet Equinox in Boone, NC
The 2026 Chevrolet Equinox continues the development of Chevrolet’s compact SUV platform with an emphasis on mechanical efficiency, structured design proportions, and integrated vehicle control systems. The model is available in multiple trims, including LT, RS, and ACTIV, each designed to support different driving environments through specific wheel, tire, and suspension configurations. The vehicle also introduces a new Polar White exterior color for the model year and includes a standard drive mode selector dial across all trims. This system allows drivers to adjust vehicle response characteristics to suit different driving conditions.
The 2026 Chevrolet Equinox platform combines a turbocharged gasoline engine with either a continuously variable transmission or an eight-speed automatic transmission, depending on drivetrain configuration. The vehicle structure incorporates independent suspension components, electronic steering control, and a braking system designed for consistent stopping performance. Exterior dimensions support maneuverability within urban environments while maintaining sufficient interior passenger space and cargo capacity.

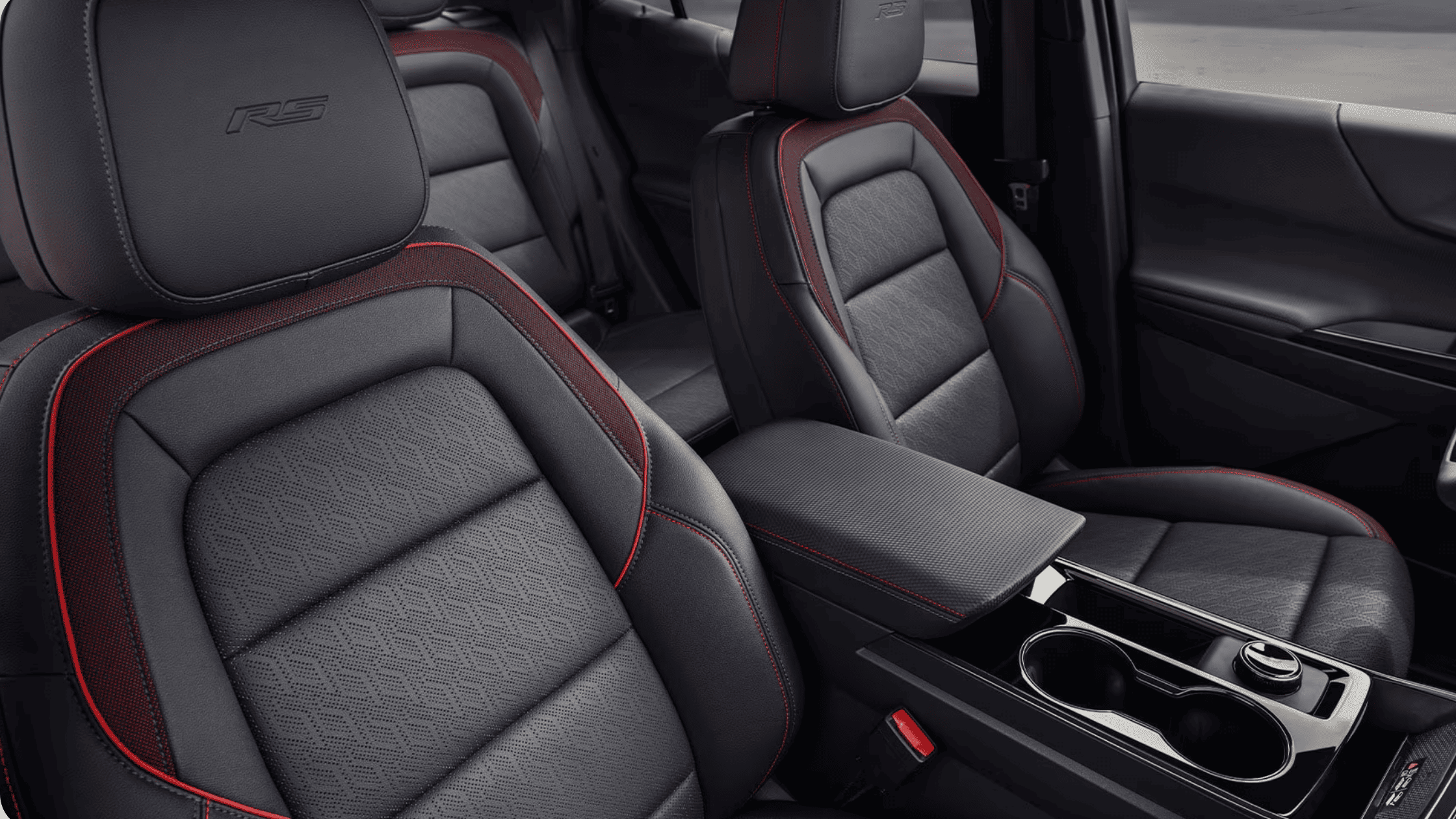

Interior Space and Passenger Accommodation Measurements
Interior passenger dimensions in the 2026 Chevrolet Equinox provide sufficient space for occupants in both seating rows. Front headroom measures 40.0 inches in models without a sunroof. Rear headroom measures 39.2 inches without a sunroof.
Vehicles equipped with a sunroof provide slightly reduced measurements. Front headroom measures 38.2 inches with a sunroof installed. Rear headroom measures 37.8 inches in the same configuration.
Front shoulder room measures 57.7 inches. Rear shoulder room measures 55.8 inches. These measurements support passenger seating comfort across both rows.
The front hip room measures 55.2 inches. The rear hip room measures 50.8 inches. These measurements allow sufficient seating space for occupants while maintaining interior packaging efficiency.
Passenger volume reaches 104.3 cubic feet in vehicles without a sunroof. Models equipped with a sunroof provide 100.1 cubic feet of passenger volume due to structural roof components associated with the sunroof assembly.
Exterior Dimensions and Vehicle Proportions
The exterior dimensions of the 2026 Chevrolet Equinox reflect the compact SUV classification while maintaining balanced proportions for passenger space and cargo capacity. The vehicle uses a wheelbase measurement of 107.5 inches, which contributes to directional stability and consistent ride characteristics.
The overall length of the vehicle measures 183.2 inches. The overall width measures 74.9 inches. The overall height measures 65.6 inches. These proportions support interior space distribution and allow the vehicle to maintain manageable dimensions for parking and urban driving.
Front track width measures 63.8 inches and rear track width measures 63.9 inches. Track width contributes to lateral stability by maintaining balanced wheel placement across the chassis.
Ground clearance varies slightly across trim levels. The LT trim has a ground clearance of 8.08 inches. The RS trim provides 8.2 inches of ground clearance. The ACTIV trim measures 8.05 inches of ground clearance. These measurements allow the vehicle to maintain clearance over uneven road surfaces and minor obstacles.
Turbocharged Engine Architecture and Performance Output
The 2026 Chevrolet Equinox uses a 1.5-liter turbocharged four-cylinder engine equipped with dual overhead camshafts and variable valve timing. The engine features a cast aluminum block and a cast aluminum cylinder head, which reduces engine weight and improves thermal management during operation. The valvetrain configuration uses four valves per cylinder, supporting efficient airflow and combustion efficiency.
Fuel delivery occurs through a direct injection system that precisely meters fuel into the combustion chamber. This design allows accurate fuel distribution and improved combustion efficiency across varying engine loads. The engine also incorporates an automatic stop and start function, which shuts off the engine during idle conditions such as traffic stops and restarts it automatically when the driver releases the brake pedal.
The turbocharged engine produces 175 horsepower at 5,600 revolutions per minute. Torque output varies depending on drivetrain configuration. Front-wheel-drive models generate 184 pound-feet of torque between 2,000 and 4,800 revolutions per minute. All-wheel-drive models produce 203 pound-feet of torque between 2,000 and 4,000 revolutions per minute. The turbocharger allows the engine to deliver torque within a wide operating range, which supports consistent acceleration and steady performance during moderate load conditions.
The engine uses a bore measurement of 2.9 inches and a stroke measurement of 3.4 inches. This configuration supports balanced combustion characteristics and stable power delivery. Combined with direct fuel injection and variable valve timing, the engine maintains controlled airflow and combustion stability throughout the operating range.
Transmission Systems and Drivetrain Configurations
The 2026 Chevrolet Equinox provides two transmission configurations that correspond with the selected drivetrain layout. Front-wheel-drive models use a continuously variable transmission. This transmission design uses a variable pulley system to adjust gear ratios smoothly without fixed gear steps. The system maintains engine operation within efficient speed ranges during acceleration and cruising.
All-wheel-drive models use the Hydra-Matic 8T45 eight-speed automatic transmission. This transmission provides multiple gear ratios that allow the engine to operate efficiently across a range of driving conditions. The eight-speed configuration enables gradual ratio changes during acceleration while maintaining lower engine speed during highway travel.
The Hydra-Matic 8T45 transmission uses the following gear ratios. First gear has a ratio of 4.69. Second gear uses a ratio of 3.31. Third gear operates at 3.01. Fourth gear is set at 1.92. Fifth gear operates at 1.45. Sixth gear maintains a 1.00 ratio. Seventh gear uses a ratio of 0.75. Eighth gear provides a ratio of 0.62.
The final drive ratio varies between drivetrain configurations. Front-wheel-drive models use a final drive ratio of 5.81. All-wheel-drive models use a final drive ratio of 3.47. These ratios influence torque distribution from the transmission to the wheels and affect acceleration characteristics and cruising efficiency.
Chassis Structure and Suspension Engineering
The chassis architecture of the 2026 Chevrolet Equinox combines front and rear suspension systems that support vehicle stability and ride consistency. The front suspension uses a MacPherson® strut configuration with specifically tuned coil springs. The design includes a direct-acting stabilizer bar that helps control body motion during cornering and directional changes.
The rear suspension uses a four-link independent system. This configuration allows each rear wheel to move independently in response to road surface variations. Independent suspension movement helps maintain tire contact with the road and supports improved ride stability on uneven surfaces.
Steering input is controlled through a dual-pinion rack electric power steering system. This system uses electric assistance to reduce steering effort at lower speeds while maintaining precise steering control at highway speeds. The steering ratio is 17.0 to 1, providing balanced steering response during both low-speed maneuvering and higher-speed travel.
The vehicle turning circle measures 37.1 feet, which supports maneuverability within confined driving environments such as parking areas and city streets.
Braking System Design and Wheel Configurations
The braking system on the 2026 Chevrolet Equinox uses four-wheel disc brakes combined with anti-lock braking and electronic stability control. This configuration allows the vehicle to maintain directional control during braking events, particularly in low-traction conditions.
The system uses Duralife™ brake rotors paired with low-drag brake calipers. Duralife™ rotors are designed to provide extended rotor durability and help reduce brake dust accumulation. Low-drag calipers reduce friction during non-braking conditions, which helps improve overall mechanical efficiency.
Wheel sizes vary depending on trim configuration. The LT and ACTIV trims include 17-inch aluminum wheels as standard equipment. The RS trim includes 19-inch aluminum wheels as standard. The RS trim also offers available 20-inch aluminum wheels.
Tire configurations correspond with the wheel sizes and trim selections. The ACTIV trim uses 235/65R17 all-terrain tires designed to provide improved traction on loose surfaces. The LT trim uses 235/65R17 all-season tires for general road conditions. The RS trim uses 235/55R19 all-season tires as standard equipment and offers 235/50R20 all-season tires with the larger wheel option.
Cargo Capacity and Utility Measurements
The cargo compartment in the 2026 Chevrolet Equinox supports flexible storage capacity through a folding rear seat configuration. Cargo volume measures 29.8 cubic feet behind the rear seat when the seatback remains upright. When the rear seat is folded down, cargo capacity increases to 63.5 cubic feet.
Fuel Capacity and Trailering Capability
Fuel tank capacity differs slightly between drivetrain configurations. Front-wheel-drive models include a fuel tank with an approximate capacity of 14.8 gallons. All-wheel-drive models use a slightly larger fuel tank with an approximate capacity of 15.6 gallons.
The 2026 Chevrolet Equinox also supports light trailering capability. Front-wheel-drive models provide a trailering capacity of 800 pounds. All-wheel-drive models increase trailering capability to 1,500 pounds. These values represent the maximum rated capacity under proper loading conditions.
Passenger weight, cargo distribution, and installed vehicle options may influence the available trailering capacity during operation.
Integrated Drive Mode Control System
A drive mode selector dial is included as standard equipment on all trims of the 2026 Chevrolet Equinox. The selector allows drivers to modify vehicle response characteristics through electronically controlled driving modes.
The drive mode system adjusts parameters associated with throttle response, traction management, and drivetrain behavior. By modifying these parameters, the system allows the vehicle to adapt to varying road surfaces and driving conditions.
Integration of drive mode control with electronic stability control, steering assistance, and drivetrain management contributes to consistent vehicle behavior during changing road conditions.
