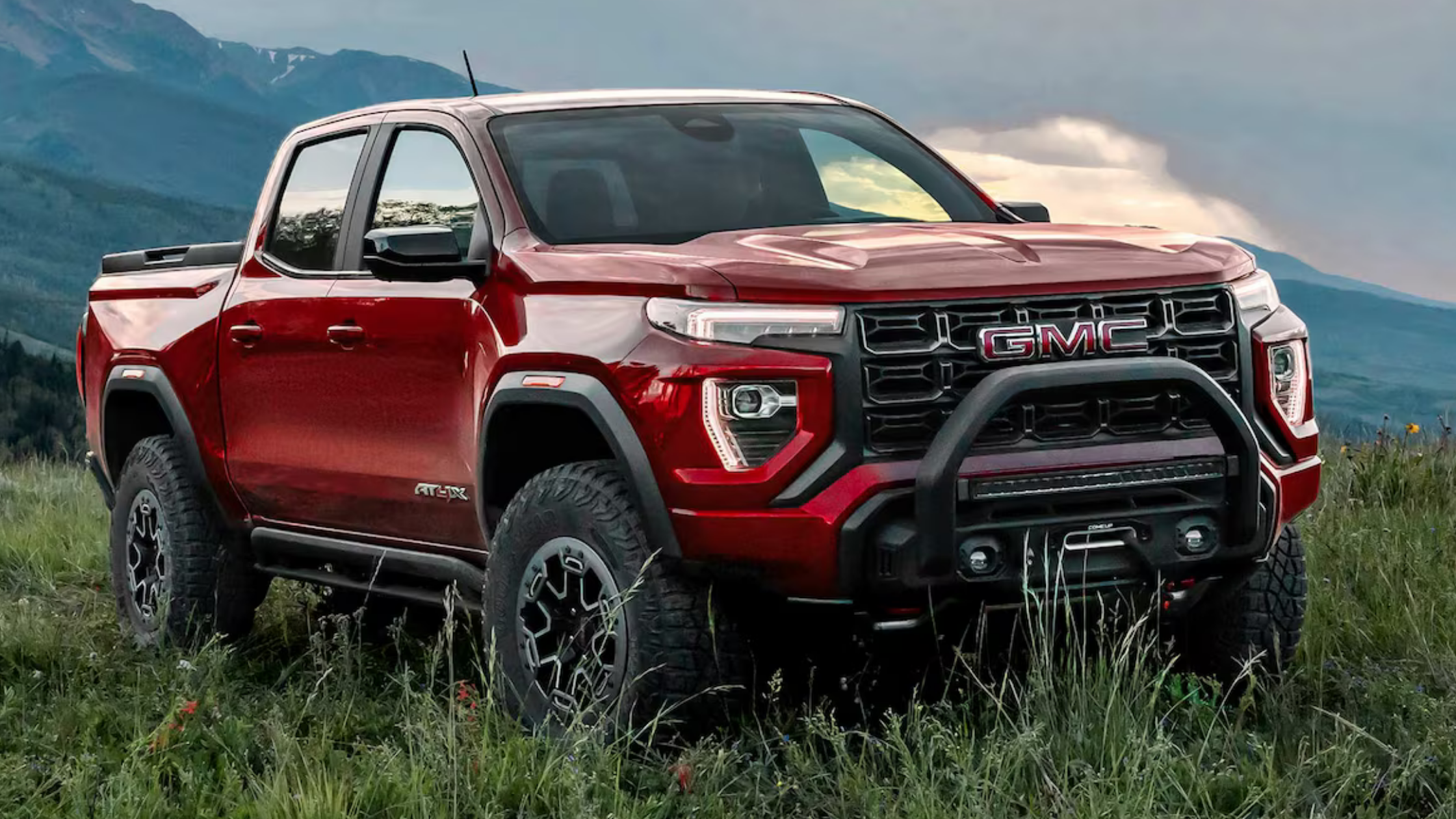

2025 GMC Canyon near West Jefferson, NC
The 2025 GMC Canyon presents a midsize truck built around technical refinement and functional versatility. It delivers a balance of engine performance, chassis control, and utility features designed to support demanding tasks and diverse driving conditions. This model combines a turbocharged powertrain with modern suspension technology, precise dimensions for cargo and passenger space, and integrated safety systems that contribute to both capability and driver confidence.

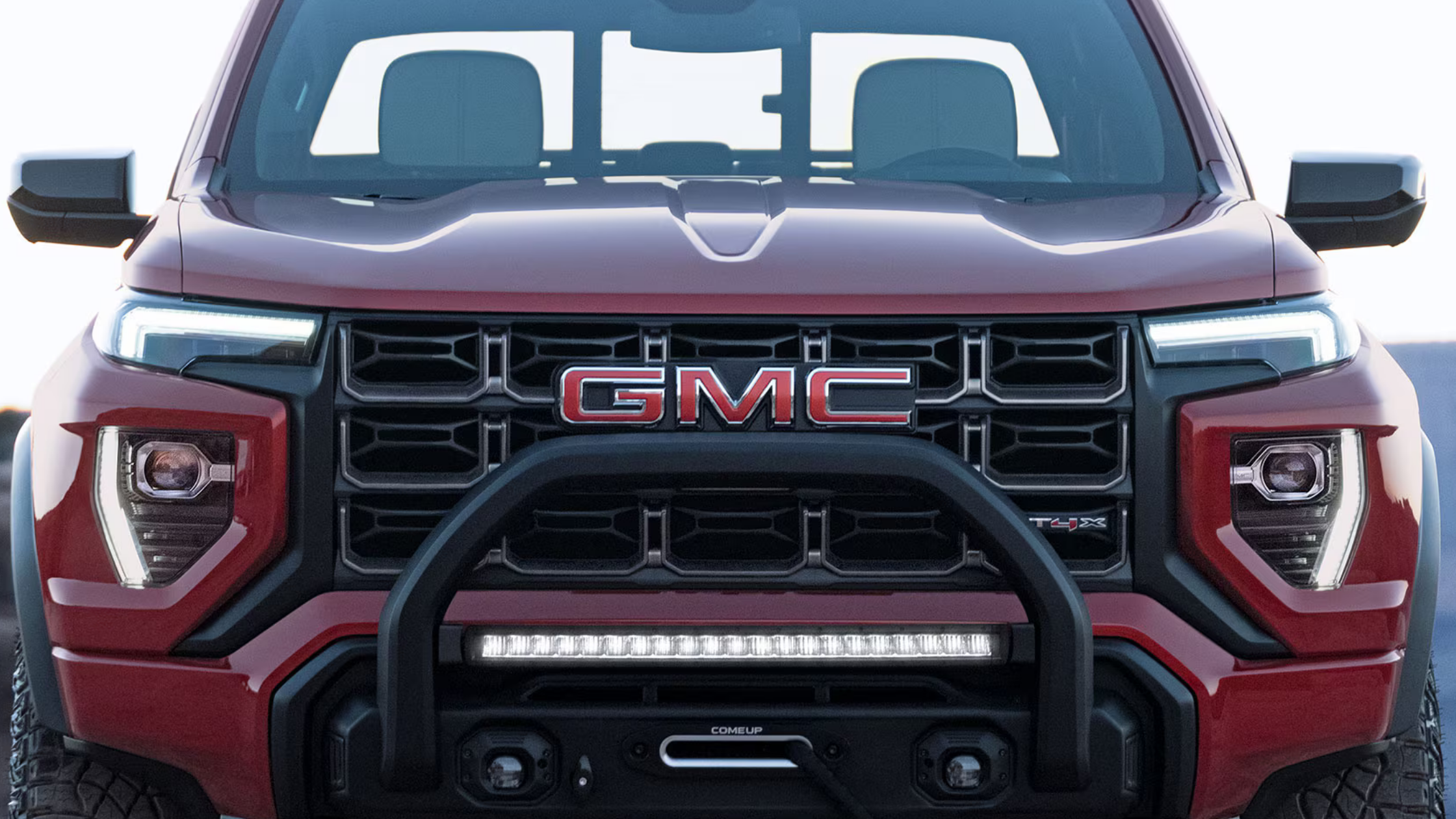

Engine Dynamics and Transmission Control
The 2025 GMC Canyon is equipped with a 2.7-liter inline-four turbocharged engine that employs dual overhead camshafts with variable valve timing and lift, supported by an Active Fuel Management system that enhances efficiency by deactivating cylinders when full power is unnecessary. This engine features a cast aluminum block and cylinder head, which reduces weight while maintaining structural strength.
It produces 310 horsepower at 5600 rpm and 430 pound-feet of torque at 3000 rpm, figures that provide substantial power for hauling and towing. Fuel delivery is managed through a direct high-pressure injection system that optimizes combustion efficiency.
Power is transferred via the Hydra-Matic 8L80 eight-speed automatic transmission. The wide-ranging gear ratios, from a low first gear ratio of 4.56 to a fuel-saving eighth gear ratio of 0.65, allow the engine to operate effectively across various speed and load conditions. The transmission ensures smooth shifts and contributes to overall vehicle responsiveness and fuel economy.
The final drive ratio is set at 3.42, balancing performance with drivetrain durability. This powertrain configuration allows the 2025 GMC Canyon to handle both urban driving and more demanding terrain with stability and control.
Exterior Design Focused on Functionality and Terrain Adaptation
The exterior dimensions and features of the 2025 GMC Canyon are engineered for a balance of utility and off-road performance. The wheelbase measures 131 inches, providing a stable platform for ride comfort and cargo management.
Overall length for the Elevation, AT, and Denali trims stands at 213.2 inches. The vehicle width, including mirrors, is 84.4 inches. Height varies depending on trim and suspension setup, with the Elevation and AT4 models measuring 79.8 inches in height, the AT4X model rising to 81.6 inches, and the Denali trim at 80.4 inches.
Ground clearance is a key functional metric. The Elevation and AT4 trims offer 9.6 inches, while the AT4X trim extends this to 10.7 inches, improving capability over uneven terrain. Off-road approach angles range from 33.3 degrees on most trims up to 36.9 degrees on the AT4X. Departure angles vary between 22 and 25 degrees, with break-over angles ranging from 20.8 to 24.5 degrees, values that support effective navigation of obstacles.
Wheel sizes and tire types reflect the truck’s intended use across trims. The AT4X comes with 17-inch aluminum wheels and aggressive mud-terrain tires, while the Nightfall Edition features 20-inch high-gloss black aluminum wheels paired with 275/60R20 all-terrain tires, supporting both aesthetics and function.
The 2025 GMC Canyon introduces new color options, including Glacier Metallic, Desert Sun, and Rapids Metallic, offering visual variety without compromising the functional design.
Additional exterior features include a bed-mounted Off-Road Sports Bar and rocker panel protectors on select trims, providing structural reinforcement and cargo management. A snorkel is available for the AT4X trim to improve engine air intake during water crossings or in dusty environments. The Bed Pro Utility Package offers configurable utility walls and integrated straps for organized gear storage within the cargo bed.
Chassis and Suspension Engineering for Versatility
The chassis and suspension of the 2025 GMC Canyon are designed to support both road comfort and off-road capability. Front suspension on both two-wheel and four-wheel drive models uses an independent coil-over-shock design with twin-tube shocks that provide a responsive and controlled ride. The AT4X variant upgrades to Multimatic® DSSV dampers at both front and rear suspension, which deliver precision damping for improved handling and comfort on uneven surfaces.
The rear suspension utilizes a solid axle with semi-elliptic two-stage multi-leaf springs and twin-tube shocks. The inclusion of Multimatic® DSSV dampers on the AT4X model enhances rear suspension responsiveness, reducing harshness on rough terrain.
The rear axle setup varies with the trim. The Elevation trim is equipped with an open differential, while the AT4 and Denali trims feature a limited-slip differential to improve traction under reduced grip. The AT4X includes power-locking front and rear differentials, providing maximum traction for challenging off-road conditions.
Steering is managed through an electric power-assisted rack-and-pinion system, delivering precise control and feedback. Braking is handled by power-assisted four-wheel disc brakes fitted with Duralife™ long-life rotors. Anti-lock braking system (ABS) is standard across all models, and hill descent control is available on the AT4 and AT4X trims, enabling controlled descents on steep or slippery slopes.
Interior Space and Utility Dimensions
The cabin dimensions emphasize comfort and usability. Front headroom measures 40.3 inches, with legroom at 45.2 inches. Rear passengers benefit from 38.3 inches of headroom and 34.7 inches of legroom. Shoulder and hip room measurements confirm a spacious interior layout conducive to extended trips or work-related travel.
Fuel capacity is approximately 21.4 gallons, balancing fuel range with the weight considerations of a midsize truck.
Curb weight ranges from 4430 pounds for the Elevation trim two-wheel drive to 4970 pounds for the AT4X trim, reflecting additional equipment and off-road hardware.
Gross Vehicle Weight Ratings (GVWR) reach 6100 pounds for two-wheel drive Elevation trim and increase to 6250 pounds for four-wheel drive and specialized trims. Payload capacity ranges from 1250 pounds on the AT4X trim to 1640 pounds on the Elevation trim, two-wheel drive, supporting various cargo needs. Trailering capacity is rated up to 7700 pounds on the Elevation, AT4, and Denali models, with the AT4X rated at 6000 pounds.
Integrated Safety and Driver Assistance Systems
Safety is supported by a combination of mechanical features and available driver aids. The braking system’s Duralife™ rotors are engineered for durability and consistent stopping power. ABS is standard, helping to maintain vehicle control during emergency braking.
Hill descent control on AT4 and AT4X trims assists with controlled vehicle lowering on steep slopes by automatically modulating brake pressure, reducing driver workload, and improving safety.
The availability of power-locking differentials on the AT4X improves traction on loose or uneven surfaces, limiting wheel slip and enhancing vehicle stability.
These features work together with the truck’s suspension and steering systems to provide a controlled and predictable driving experience across a variety of conditions.
Schedule a Test Drive at Elevation Chevrolet GMC
The 2025 GMC Canyon combines a 310-horsepower turbocharged engine with advanced suspension tuning and modern safety technology to support confident performance on and off the road. From its traction systems to its practical cargo management features, each component is engineered with utility in mind. A hands-on drive allows you to explore how these systems function together in real driving scenarios. Visit Elevation Chevrolet GMC near West Jefferson, NC, to schedule your test drive and experience its capabilities for yourself.
